Description

The Renogy 100W Solar Power Starter Kit is perfect for new customers wanting to get a start in solar. The Starter Kit is great for off-grid applications; such as RVs; trailers; boats; sheds; and cabins — providing many benefits; including; but not limited to; quiet power production and grid independence. Adding a monocrystalline solar panel kit can extend your travels further then ever before.

This solar kit comes with the tools necessary for a new system: one Renogy 100W 12V Mono Solar Panel; one 30A PWM Wanderer Charge Controller; one 20ft 10AWG MC4 Adaptor Kit; one 8ft 10AWG Tray Cable; and one set of Z-brackets. Start your solar adventure with a Renogy Starter Kit.

If you have any questions regarding this product; please submit a case.

Key Features

Efficient

• High solar cell efficiency: Monocrystalline 18.4%
• Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments

Reliable

• EL tested solar modules; no hot-spot heating guaranteed
• Corrosion-resistant aluminum frame for extended outdoor use; allowing the panels to last for decades

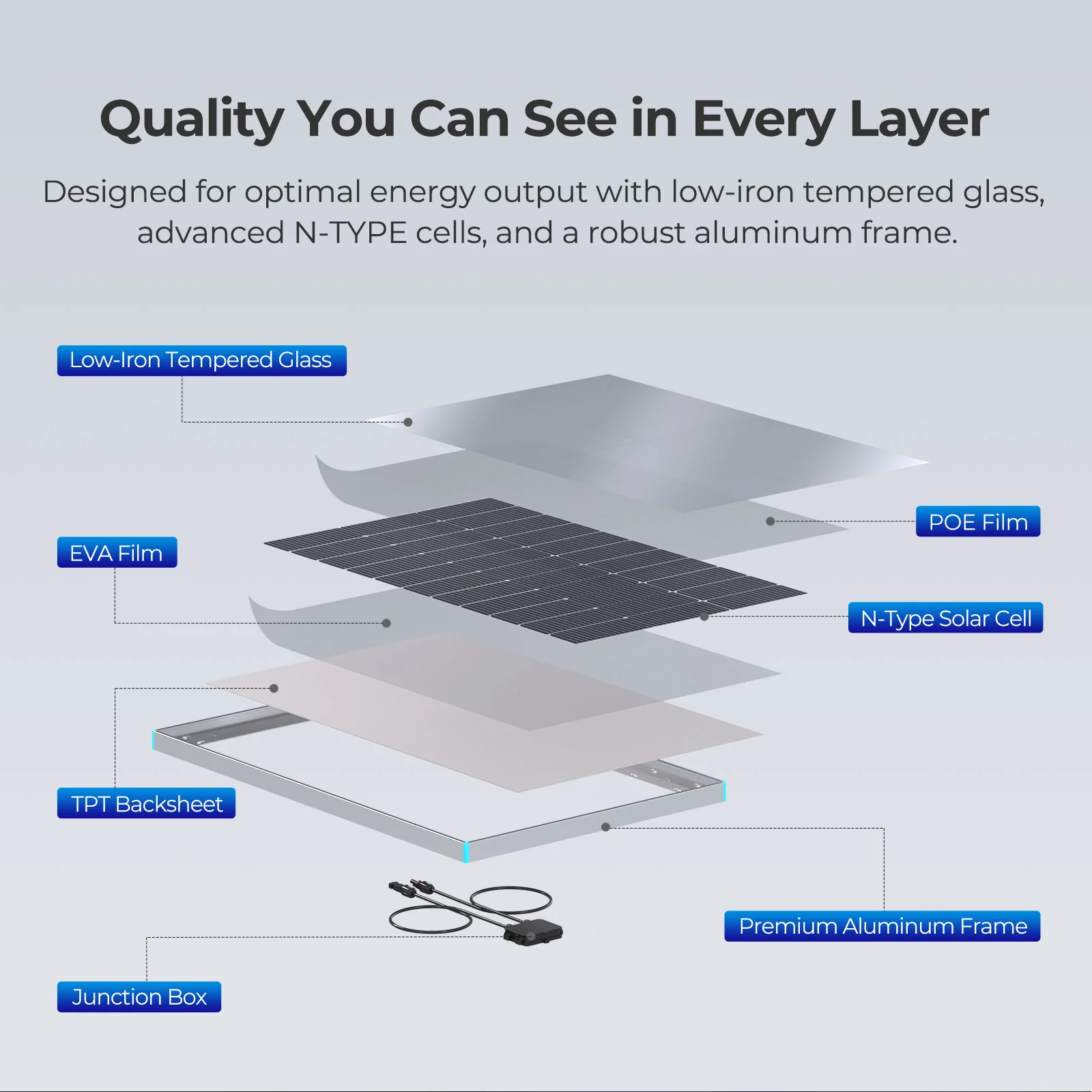

• TPT back sheet ensures smooth performance over a long period of time
• IP65 rated junction box provides complete protection against environmental particles and low pressure water jets

Intuitive

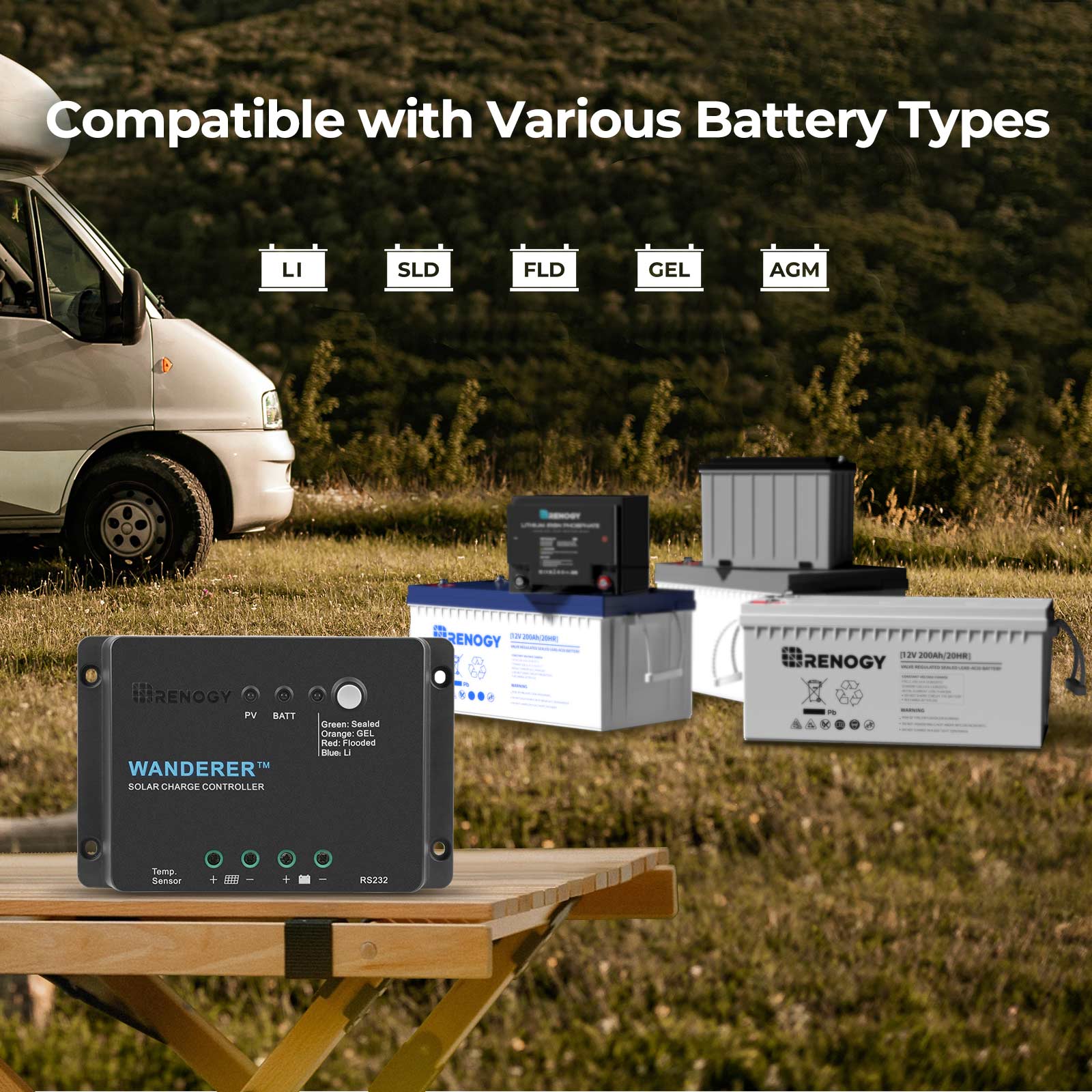

• Sealed; Gel and Flooded charging algorithim ready
• 4-Stage battery charging process for a rapid; efficient; and safe battery charging

Safe

• The Renogy Wanderer is equipped with multiple electronic protections; overcharging; overload; short-circuit and reversed polarity
• Pre-drilled holes on the back of the panel allow for fast and secure mounting

Expandable

• With the Renogy Wanderer 30A PWM Charge Controller; you can expand your system up to a maximum of 400W.

Package Includes

100W Monocrystalline Panel(Compact Design) 1 x	Renogy Wanderer Li 30A PWM Charge Controller 1 x
Mounting Z Brackets 1 x	Renogy 20ft 10AWG MC4 Adaptor Kit (A pair) 1 x
Renogy 8ft 10AWG Tray Cables (A pair) 1 x

Renogy 100W Monocrystalline Solar Panel(Compact Design)	Renogy Wanderer Li 30A PWM Charge Controller
Maximum Power: 100W	Norminal Voltage: 12VDC
Maximum System Voltage:600V DC (UL)	Rated Charge Current: 30A
Optimum Operating Voltage (Vmp): 18.6V	Max. PV Input Voltage: 25 VDC
Optimum Operating Current (Imp): 5.38A	Max. PV Input Power: 400W (12V)
Open-Circuit Voltage (Voc): 22.3V
Short-Circuit Current (Isc): 5.86A

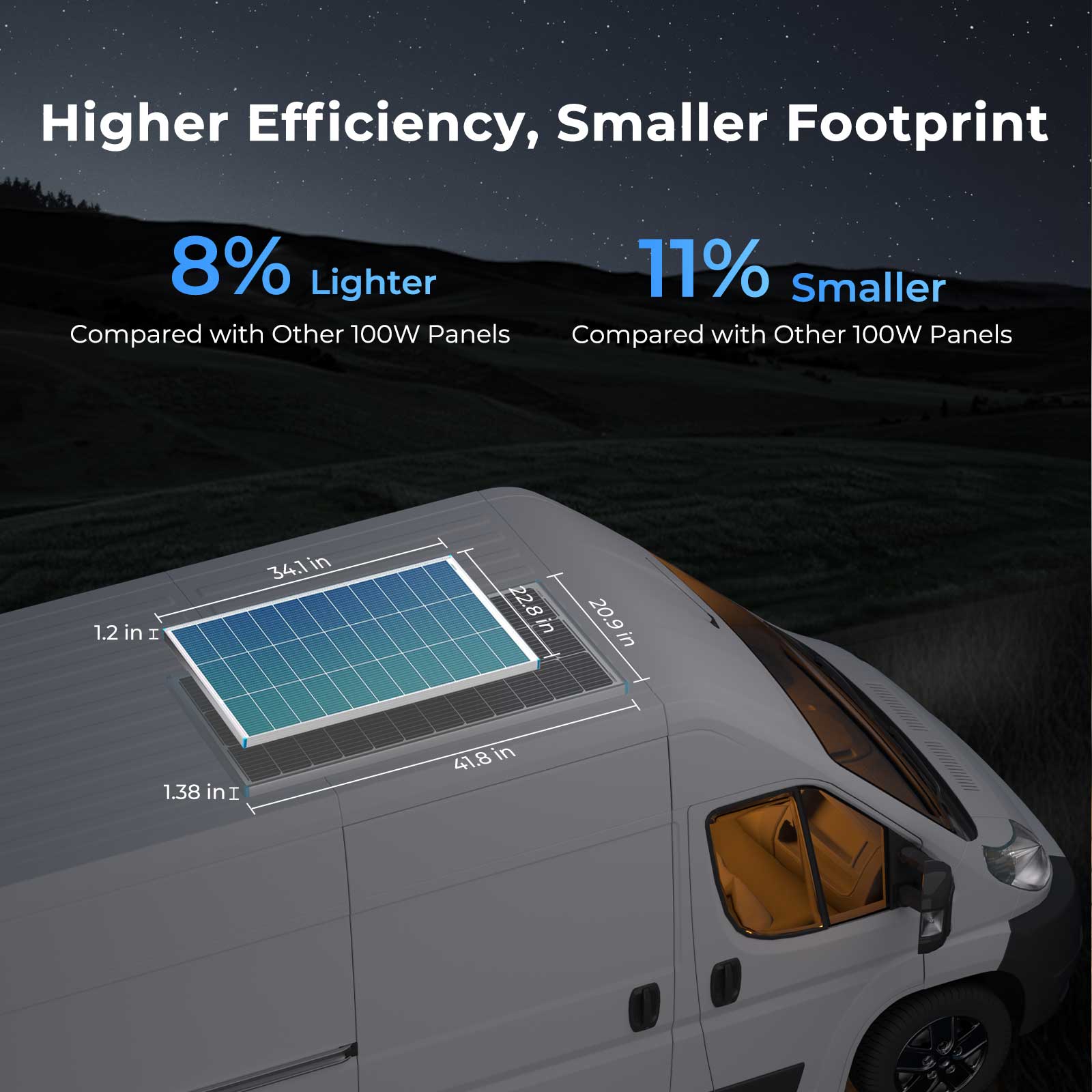

Dimensions: 1076x509x35mm / 42.4x20.0x1.4

Renogy 8ft 10AWG Tray Cables (A pair)	Mounting Z Brackets (Set)
Length: 8ft	Eight Long Cap Bolts and Four Short Bolts
AWG: 10	Four Spring Washers and Four Washers
Rating Voltage: 600/1000V	Four Z Shape Solar Panel Brackets
Temperature: -40°F to +185°F	Four Nuts

Renogy Adaptor Kit (Set)
Length: 20ft
AWG: 10
Rating Voltage: 600/1000V
Temperature: -40°F to +185°F

Panels	25-year transferable power output warranty: 5 year/95% efficiency rate; 10 year/90% efficiency rate; 25-year/80% efficiency rate 5-year material and workmanship warranty
Accessories	1-year material warranty
