1000W 12V Pure Sine Wave Inverter w/ UPS Transfer Switch

The Renogy pure sine wave power inverter is an essential component for off-grid systems. It efficiently converts DC power stored in batteries into AC power, making it perfect for powering a wide range of electronic devices. With automatic switching between on-grid and off-grid, you can rest assured that your devices will continue to run smoothly, even during power outages.

Transforming power with safety, efficiency, and adaptability.

Load Impact Considerations

Load Optimization for Performance

Cooling Fans

Safety Protection

The Tripping Issues Caused by Inductive Loads

This problem may be the result of high peak current and voltage demands placed on the electrical system. To address these tripping issues, it is important to consider the load characteristics of inductive appliances and ensure that the electrical system is capable of handling their peak current and voltage demands. Common inductive appliances include air conditioners, refrigerators, humidifiers, vacuum cleaners, treadmills, microwave ovens, range hoods, audio equipment, and electric fans, among others.

Tripping Issues Caused by Overloaded Appliances

Common causes of overloading include using multiple high-power appliances simultaneously, to avoid tripping issues caused by overloaded appliances, this may involve checking the capacity of your electrical panel and circuit breakers, as well as the power ratings of your appliances. It is essential to ensure that the wattage of all the appliances does not exceed 1000W.

Cooling Temperature Management for Optimal Electrical System Performance

The main function of cooling fans in Renogy inverters is to provide sufficient cooling airflow to remove the heat generated within the inverter. This ensures that the inverter remains within its recommended operating temperature range. The cooling fans draw in the surrounding air, which passes over the heat sinks or radiators within the inverter. The air then carries away the heat, which is exhausted out of the inverter through exhaust vents or louvers.

Electrical Safety Guarantee, Peace of Mind with Assured Protection

Renogy inverters are equipped with various protections including over-voltage,over-current protection, and short-circuit protection to ensure their safe and reliable operation which are crucial for ensuring the reliable operation of inverters. They help safeguard the inverter from harmful voltage and current levels, extending its lifespan and preventing potential equipment failure.

Instant Device Monitoring with Built-in Bluetooth

DC home app real-time monitoring, ensures safe and efficient operation

Easy to Use Remote Control

Operating your machine from the comfort of your chair

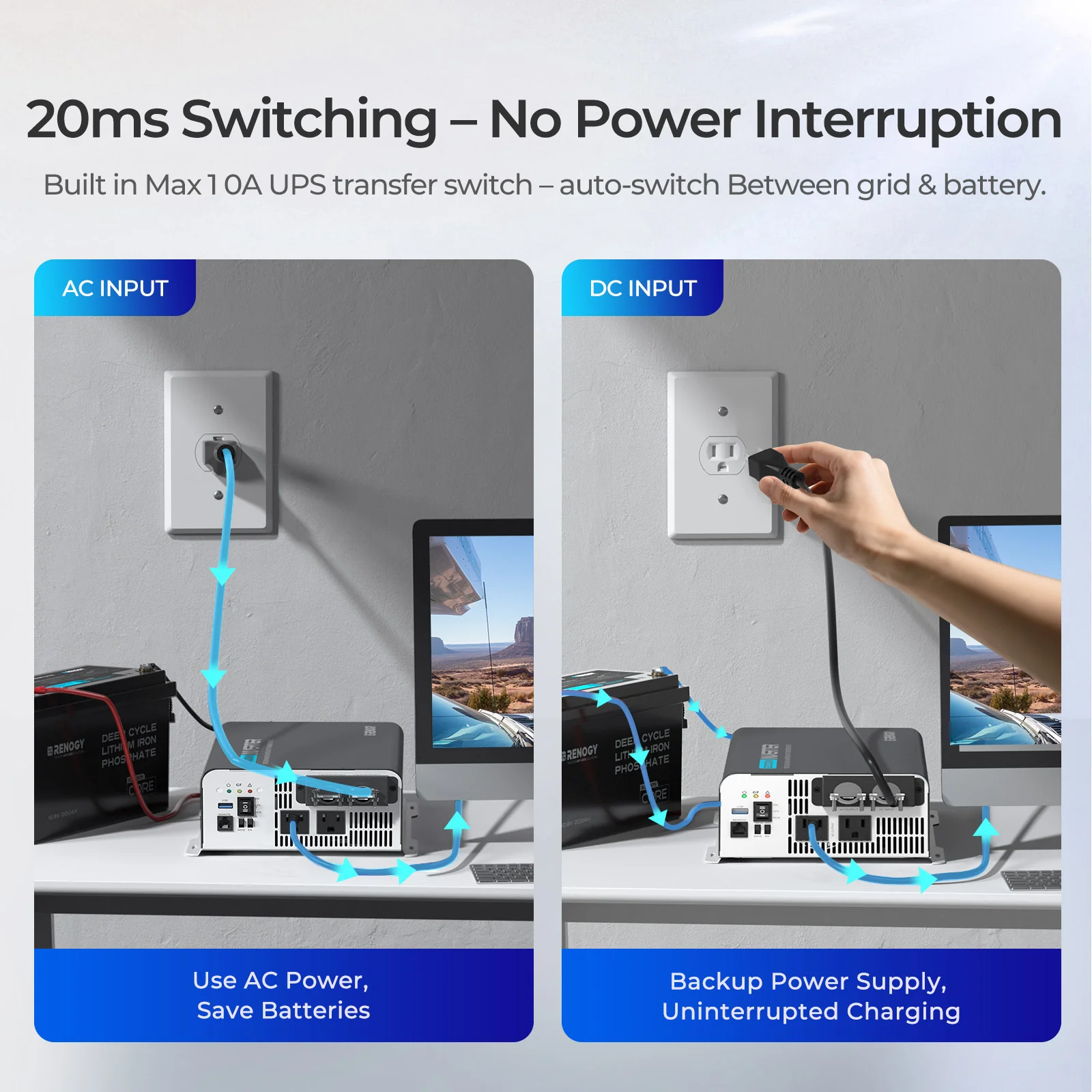

UPS Powering

The inverter's connectivity to shore power ensures a continuous and dependable supply of electricity, even without a stable power source. This feature offers reassurance and operational efficiency, guaranteeing seamless backup power both on and off the grid. Whether in remote locations, RVs, marine environments, semi-trucks, or during temporary power outages, the inverter's ability to connect to shore power ensures that critical operations remain uninterrupted, safeguarding against any potential downtime.

Performance Advantages

Performance Advantages Exceeding Other Brand Inverter

Backup

Garden Shed

RV System

Renogy System

Keeping Productivity and Entertainment Flowing, 24/7

A reliable backup power supply is essential for maintaining uninterrupted productivity and entertainment. Whether you're working on important documents, streaming your favorite shows, or gaming with friends online, a dependable backup power source ensures that you can keep going, no matter what.With a backup power supply, you can rest assured that unexpected power outages or low battery warnings won't interrupt your workflow or ruin your fun.

The Art of Creating and Tending a Vibrant Outdoor Space

Off-grid gardening also provides a sense of tranquility and stress relief. It's a form of therapy that allows individuals to unwind, clear their minds, and connect with nature. The repetitive tasks of digging, planting, and watering can be meditative and deeply relaxing, providing an escape from the hustle and bustle of daily life.

Embracing the Freedom and Adventure of the Open Road

RV lifestyle allows individuals and families to hit the road at any time, explore new places, and create unforgettable memories.

The inverter offers a comprehensive one-stop solution for integrating solar panels and batteries into your power system. By connecting the inverter to solar panels, it efficiently converts the sun's energy into usable electricity, harnessing the power of nature to power your devices and equipment.

Dimensional Reference Guide

Before installing the inverter, leave 1.97 inches of space for the top of the inverter and at least 4 inches on the side with busbars.

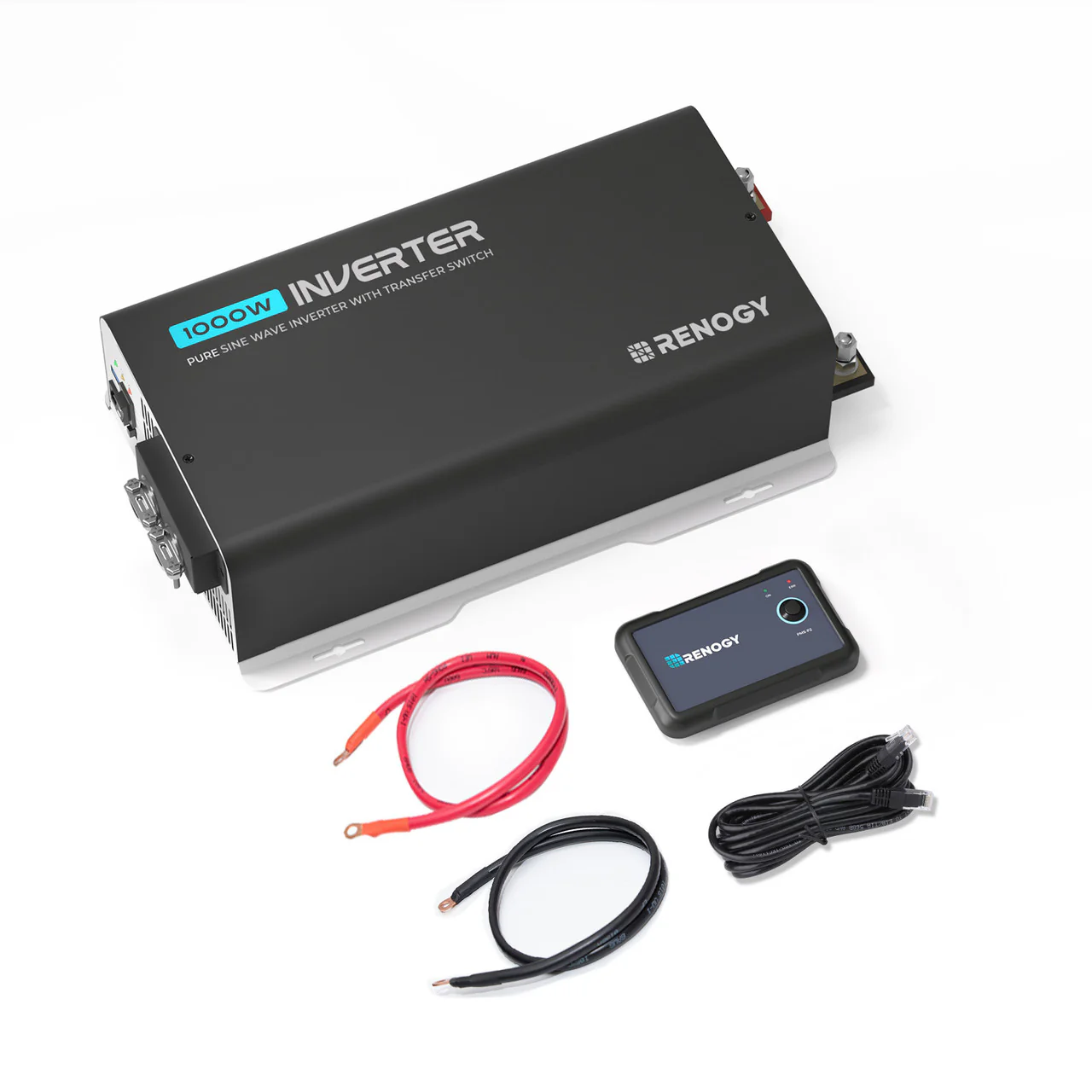

Package Includes

1 x 1000W 12V Pure Sine Wave Inverter
1 x 4AWG 3ft Inverter Cables(Pair)
1 x Wired Remote Control
1 x 5m RJ12 Ethernet Cable
1 x User Manual

Specifications
GENERAL DATA
Output Waveform: Pure Sine Wave	AC Terminals: 2 x AC Sockets + Terminal Block
DC Terminals: M8-25	Operating Temperature: -4°F ~ 113°F / -20℃ ~ 45℃
Storage Temperature: -40°F ~ 158°F / ﹣40℃～70℃	Humidity: Max 95%, Non-condensing
Cooling: Thermally Controlled Fans	Enclosure Rating: IP20
Dimensions (LxWxH): 15.2 ×8.1 × 3.5 in / 385 × 205.4 × 3.8 mm	Weight: 3.4kg/7.5lb
Regulatory and Safety Specifications: UL458,FCC Prat15 ClassB
ELECTRICAL DATA
Continuous Output Power: 1000W	Continuous Output Current: 8.3A AC
Total Harmonic Distortion (THD): ≤3%	Power Factor: 1.5A
Surge Rating: 2000W (@ 2s)	Output Voltage: 120V AC±3%
Output Frequency: 50/60Hz	Rated Battery Input Voltage: 12VDC
Battery Input Voltage Range: 11-15.5VDC	Maximum Continuous Battery Output Current: 105A
Inverter Efficiency: 92% Max	Full Load Efficiency: 87%
Power Consumption: <12W	Battery Overoltage Shutdown: 16.0VDC±0.3VDC
Battery Low Voltage Alarm: 11.0VDC±0.3VDC	Battery Low Voltage Shutdown: 10.5VDC±0.3VDC

WIRED REMOTE DATA

Front Plate Dimensions: 4.3x2.6x1.3 in /108x67x32mm	Wired Length: 16.40ft
Transfer Switch Rating: 10A	Watt: 1000W

1. What is the function of a battery inverter?

The battery inverter is pivotal in solar energy systems, as it seamlessly transforms the direct current (DC) power from solar panels into alternating current (AC) power, ensuring compatibility with the electrical grid and enabling usage in diverse appliances and devices. Its absence renders the electricity from solar panels unusable.

2. What's the difference between a Modified Sine Wave (MSW) inverter and a Pure Sine Wave (PSW) inverter?

The MSW inverter is very noisy and has a rugged waveform which can negatively affect how your appliances work.
On the other hand, the PSW inverter features a cleaner output, with a smooth and consistent waveform that is even cleaner than the grid. Inductive loads, such as microwave ovens and motors, operate faster, quieter, and cooler when connected to the PSW inverter.
Note： We used to measure the waveform quality using THD (total harmonic distortion).
PSW inverter: less than 3%
The grid: less than 5%
MSW inverter:20%-40%

3. Can this Renogy inverter be connected both on-grid and off-grid?

Yes, this inverter can be used both on-grid and off-grid, providing flexibility and convenience for various power supply scenarios. Whether you're connected to the grid or operating off-grid, this inverter has the capability to power your appliances efficiently and reliably.

4. Does this Renogy 1000W 12V Pure Sine Wave Inverter come with Bluetooth connectivity?

Yes, this allows users to monitor and control the inverter's operations using a smartphone or other Bluetooth-enabled device. Through the Bluetooth connection, you can view real-time data on the status of the inverter, including the amount of power being produced and consumed, voltage and current levels

5. Why do my electrical appliances trip?

There are several reasons that may cause trip problems:
1. When multiple appliances are used simultaneously, the combined voltage or current may exceed the inverter's capacity. As a result, the inverter's over-current and over-voltage protection functions may trip for safety reasons.
2. When inductive loads are in operation, it is also important to consider the peak current and voltage of these loads. Common inductive appliances include air conditioners, refrigerators, humidifiers, vacuum cleaners, treadmills, microwave ovens, range hoods, audio equipment, and electric fans, among others.
3.When a certain electrical appliance has a short circuit issue, it may also trip.
4.It may also be caused by loose circuit wiring or poor contact. In such cases, disconnect all circuit breakers and use a screwdriver to individually inspect and tighten the wiring of each circuit breaker.

6. What can I use with the Renogy 1000W 12V pure sine wave inverter?

Loads with a power rating of 1000 watts or less are used, such as fans, lights, and 12V batteries with a current rating of 80 amps or less. It is always recommended to avoid using all loads simultaneously if the combined power consumption exceeds 1000 watts.
Note: Renogy is proud to offer a range of 2000w and 3000w inverters as options! If your appliances require more than 1000w, renogy's 2000w and 3000w solutions are exactly what you need! Come and explore our range, we're sure you'll find something to suit your needs.

More questions about your off-grid power system? Learn more from Renogy Learning Center!
